With ISO 9001:2015, ISO 14001:2015, ISO 45001:2018 and ISO 50001:2018 accreditations, GAIL is committed towards producing quality products ensuring a safe and clean environment. GAIL’s polymer products are environment-friendly and fully recyclable. GAIL provides a wide choice of grades with consistent and reliable quality to its customers. Its manufacturing processes and quality systems ensure that the products conform to the technical specifications, backed by high quality services to provide complete solution to the customers. GAIL has been granted BIS License as per IS 7328:2020 for Product Quality Certification of polyethylene grades (Raw Material) used for moulding and extrusion. This establishes our Product Quality Certification from statutory agency (BIS) and our compliance to DCPC notification on “Quality control order. The company’s marketing network is designed to ensure regular supply of material from PATA Plant and from consignment stockist stock points situated across the country.
About Petrochemical plants

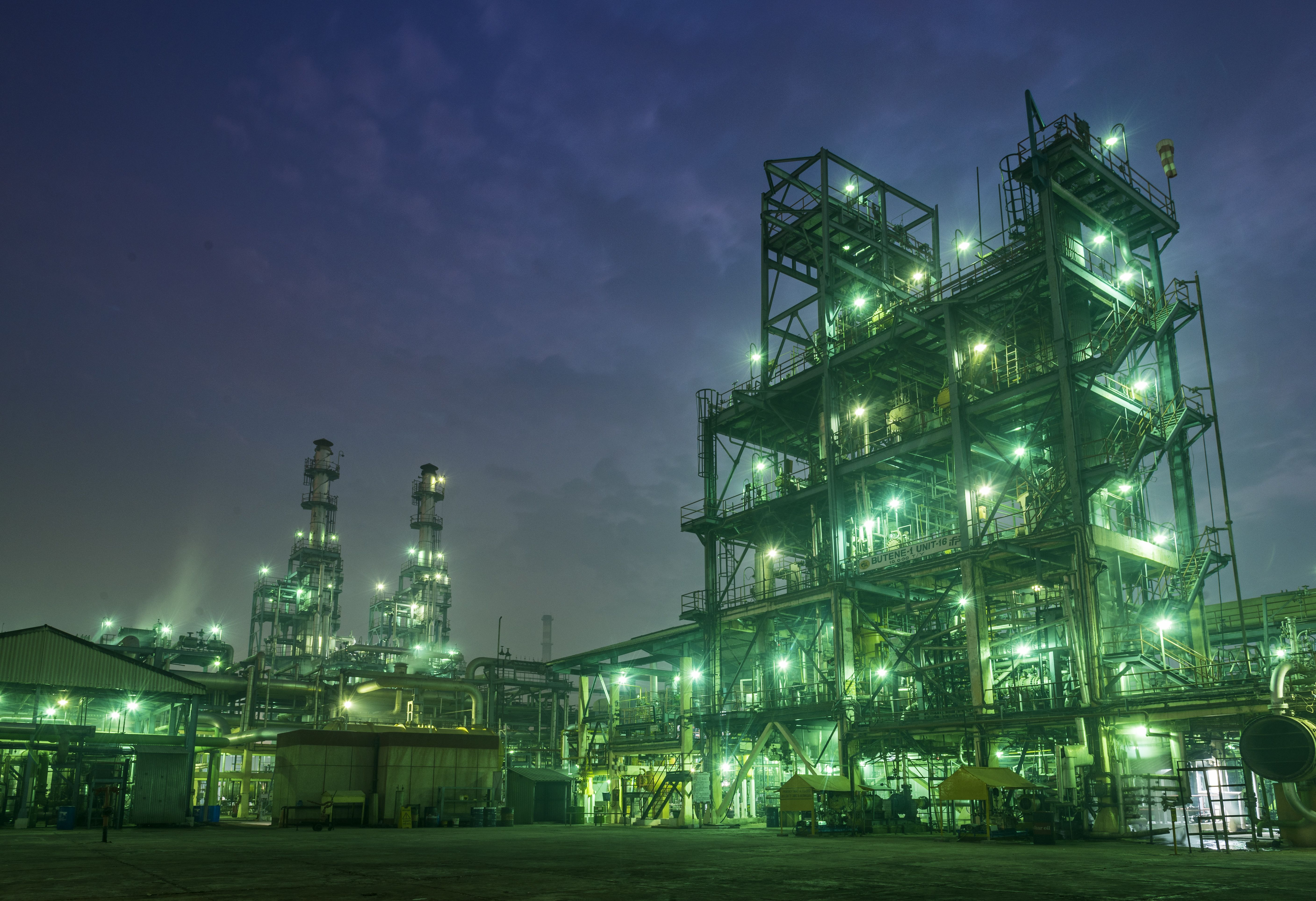

GAIL owns and operates a gas based Petrochemical Complex at PATA, District Auraiya, near Kanpur in UP (around 380 km from Delhi). GAIL has a “Sclairtech” solution polymerization process licensed from M/s Nova Chemicals, Canada to produce LLDPE and HDPE, with a nameplate capacity of 2,10,000 MT/annum and has two slurry based polymerization processes licensed from M/s Mitsui Chemicals, Japan to produce HDPE, each with a nameplate capacity of 1,00,000 MT/annum and has a gas phase Unipol PE Process of M/s Univation Technology, USA, with a nameplate capacity of 400,000 MT/ annum to produce HDPE/LLDPE.
GAIL is diversifying its Petrochemical business by entering into Polypropylene business. GAIL is setting up a 500 KTA PP plant based on PDH technology at Usar, Maharashtra to be commissioned by 2025 and another 60 KTA PP plant is also being set up at PATA petrochemical complex to be commissioned by 2024. M/s W R Grace is the technology Licensor for both the upcoming PP plants and will be utilizing Unipol PP process technology with latest generation catalyst to produce world class PP products. Homopolymer Polypropylene grades will be produced at Usar PP plant whereas both Homopolymer as well as Co-Polymer Polypropylene grades will be produced from Pata PP plant.
Petrochemical Marketing Group (PMG)
GAIL’s marketing network consists of Petrochemical Marketing Group (PMG), Noida, Marketing Services Group (MSG), Pata, 13 Zonal offices, GAIL Polymer Technology Centre (GPTC), Noida, SAP Centre, Noida and strategically located network of 45 consignment stockists with 78 stock points located across India which are being augmented to ensure that the customer needs are met on time and provide efficient pre and post sales services. GAIL has plans to approximately double the strength of consignment stockists in near future.
PMG looks after the marketing activities pertaining to Petrochemical products in GAIL. Main functions of PMG include Product Pricing, Sales & Production Planning, Sales Policy, Consignment Stockist Appointment & Management, Setting & Monitoring of Sales Targets, Coordination with Zonal Offices, Budgeting, Exports & Imports, New Projects & Strategy, MIS etc. GAIL annually caters to more than 1514 customers, spread throughout the length and breadth of the country, to meet their requirement of LLDPE & HDPE.
GAIL POLYMER TECHNOLOGY CENTRE: NOIDA

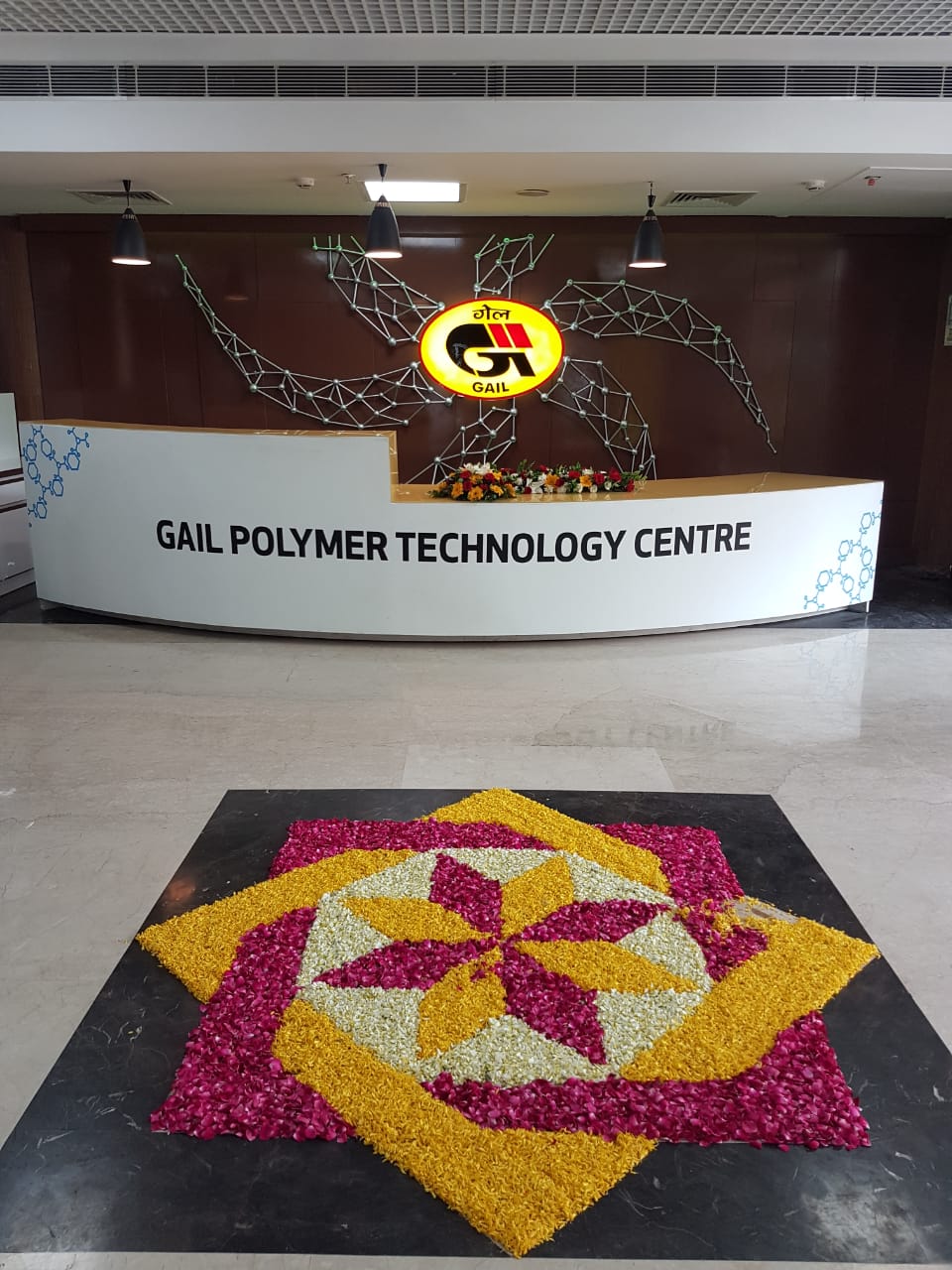

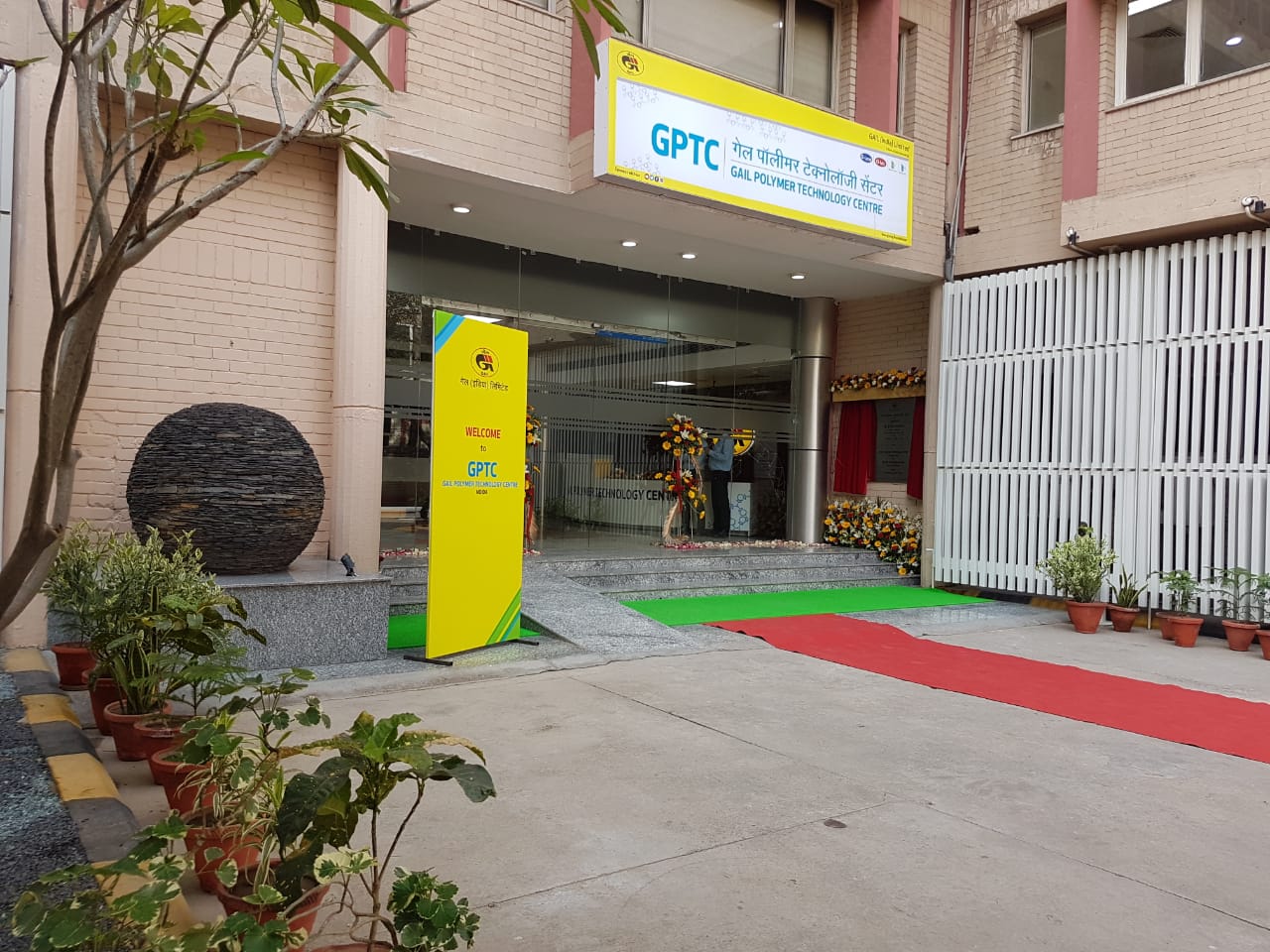

The new state of the art GAIL Polymer Technology Centre with ultra-modern processing machines and advanced technical and analytical testing equipment’s commenced at PARC Building, Noida. Technical services and Product development about GAIL polymer grades to all the customers are ensured by GAIL Polymer Technology Centre (GPTC). It acts as an interface between the customers and the plant. It is the core of polymer product development, quality enhancement and customer services. It endeavours to bring delight to the customers by providing total technical solutions to fulfil their needs.

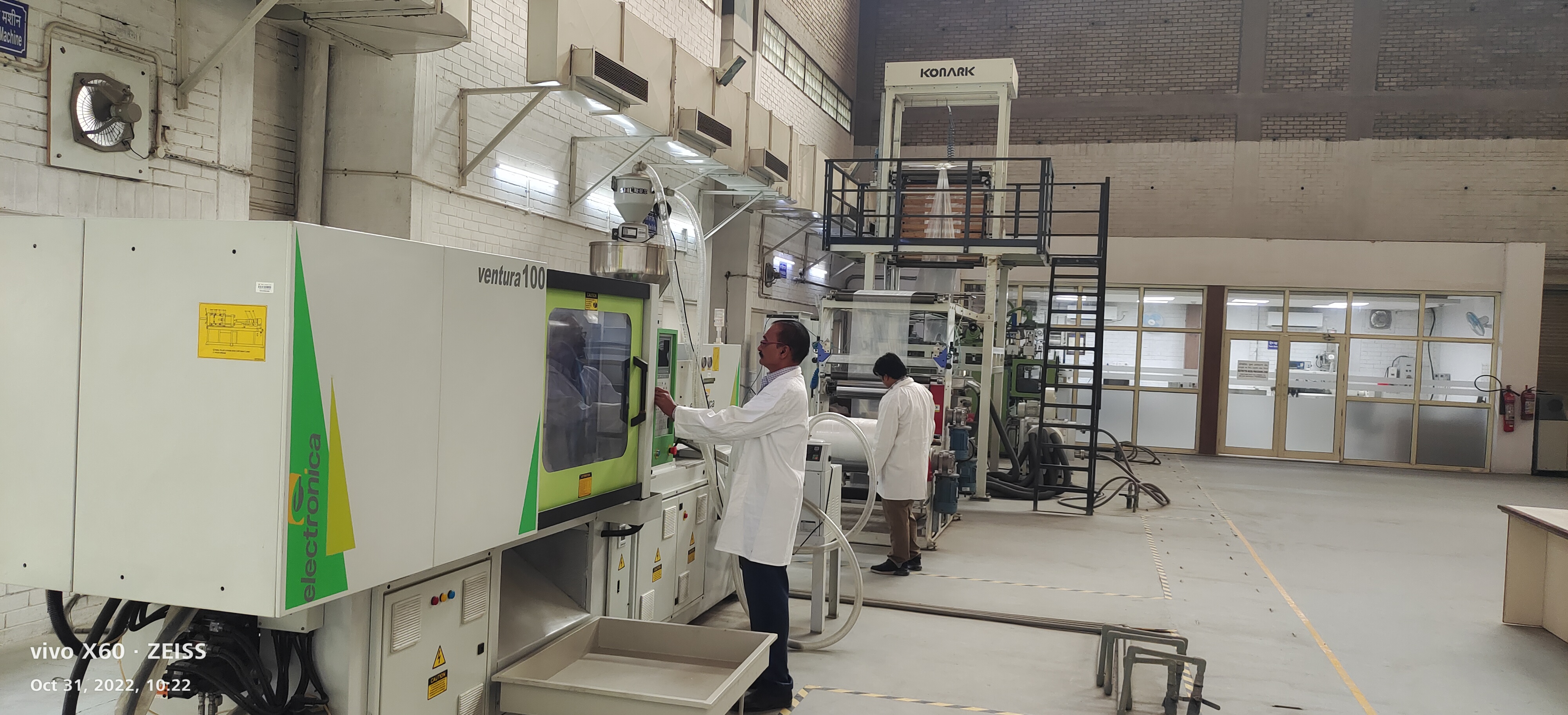

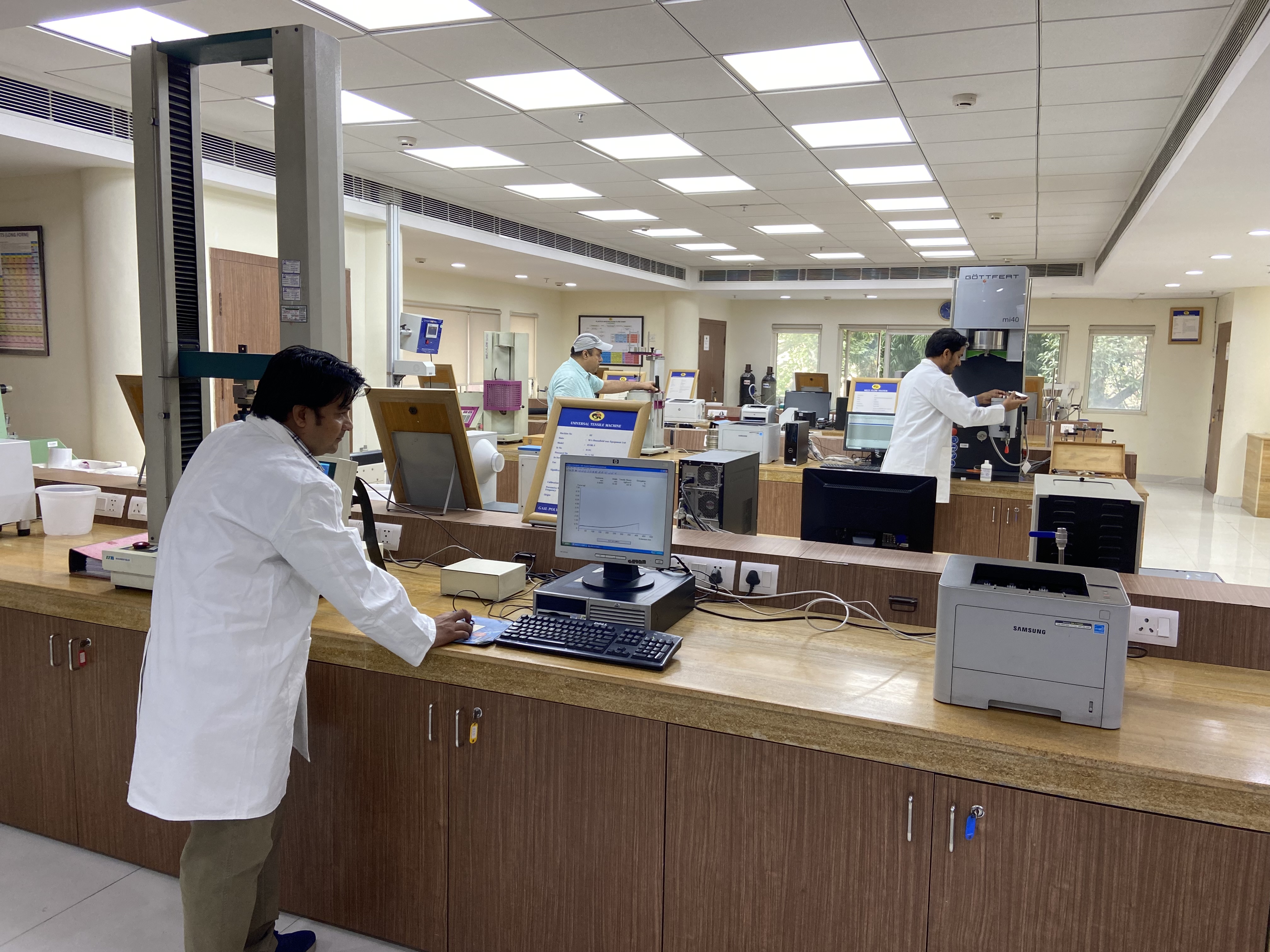

GPTC is equipped with ultra modern processing machines like Injection Moulding, Blow Moulding, Mono layer film extrusion, Twin Screw Extrusion and Lab Scale Film Plant at its processing workshop. The laboratory has been set up with advance testing equipment’s like Capillary Rheometer, Universal Tensile Tester, MFI, ESCR Equipment, Compression Moulding Machine, Izod Impact Tester, Colorimeter, Tear Tester, Haze Meter, Differential Scanning Calorimeter, FTIR, Weatherometer, Seal Strength Tester etc.
GPTC is committed to provide the following services to the customers to forge a long lasting profitable partnership with GAIL:
- Technical support to polymer customers
- Customer Quality Complaint Redressal
- Guidance to proper selection of GAIL grades
- New application development and promotion for customer benefits
- Continuous development and modification of GAIL grades to meet market needs
- Representation in BIS committees related to plastics
- Testing of polymer samples & finished product
- Additives vendor development activity
- Presentation in various technical forums
- Entrepreneurial guidance
New polymer grades Metallocene LLDPE & Hexene based HDPE:
GAIL is the first ever Indian producer of metallocene catalyst based LLDPE film grade polymer. Metallocene LLDPE (mLLDPE) polymer is used in a number of applications such as packaging, agriculture, hygiene and personal care, cross laminated tarpaulins, industrial applications etc. Metallocene based LLDPE offer performance attributes that add value to a customer's business and across the value chain for sustained growth. Depending on the application, MF18S010U/MF18A010U offer a wide range of benefits including toughness, sealing, enhanced tear properties, better elongation, easy processing, outstanding optics & down gauging possibilities.
GAIL has also produced first ever new hexene based high density polyethylene for pipe extrusion and blow moulding in India.
| Grade | MFI (I₂) (g/10min) ASTM D1238 |
Density @23°C (g/cc) ASTM D1505 |
Tensile @Yield (Kg/cm²) ASTM D638 |
Elongation @Yield (%) ASTM D638 |
Flexural Modulus (Kg/cm²) ASTM D790 |
Izod Impact Strength (J/m) ASTM D256 |
ESCR ( F50) hrs (10% Igepol) ASTM D1693 |
VSP (°C) ASTM D1525 |
|---|---|---|---|---|---|---|---|---|
| Raffia & Monofilament | ||||||||
| G-Lene W50A009 W50A009.pdf |
0.9 | 0.952 | 230 | 13 | 8500 | - | - | 122 |
| G-Lene T50A010 T50A010.pdf |
1.0 | 0.950 | 230 | 12 | 8500 | - | - | 123 |
| G-Lene Y50A010U Y50A010U.pdf |
1.0 | 0.950 | 250 | 10 | 9000 | 126 | ||
| G-Lex W52A009 G-Lex W52A009N W52A009-W52A009N.pdf |
0.9 | 0.952 | 240 | 11 | 9500 | - | - | 123 |
| G-Lex W52ASR009 G-Lex 52ASR009N W52ASR009-W52ASR009N.pdf |
0.45 | 0.964 | 260 | 09 | 11000 | - | - | 124 |
| G-Lex W55A004 G-Lex W55A004N W55A004-W55A004N.pdf |
0.45 | 0.955 | 250 | 10 | 10000 | - | - | 123 |
| Injection Moulding | ||||||||
| G-Lene I60A080 I60A080.pdf |
8.0 | 0.960 | 255 | 10 | 9500 | 70 | --- | 124 |
| G-Lene I62A080U I62A080U.pdf |
8.2 | 0.963 | 310 | 7 | 14000 | - | - | 128 |
| G-Lene I60U080 I60U080.pdf |
8.0 | 0.960 | 255 | 10 | 9500 | 70 | --- | 124 |
| G-Lene I62U080U I62U080U.pdf |
8.2 | 0.963 | 310 | 7 | 14000 | - | - | 128 |
| G-Lene I50A180 I50A180.pdf |
20 | 0.952 | 230 | 12 | 8500 | 30 | --- | 122 |
| G-Lene I56A200U I56A200U.pdf |
20 | 0.952 | 260 | 10 | 9000 | - | - | 123 |
| G-Lene I50A250 I50A250.pdf |
25 | 0.952 | 230 | 12 | 8500 | 30 | --- | 122 |
| Blow Moulding | ||||||||
| G-Lex B52A003 G-Lex B52A003N B52A003-B52A003N.pdf |
0.42 | 0.954 | 240 | 10 | 10000 | 120 | > 500 | 123 |
| G-Lene B53A003U B53A003U.pdf |
0.38 | 0.953 | 270 | 7 | 10000 | 92 | > 80 | 125 |
| G-Lex B63A003 G-Lex B63A003N B63A003-B63A003N.pdf |
0.40 | 0.963 | 280 | 9 | 12000 | 350 | >24 | 125 |
| G-Lex B55HM0003 G-Lex B55HM0003N B55HM0003-B55HM0003N.pdf |
0.08, I₂₁=11.0 | 0.954 | 250 | 11 | 10000 | - | >1000 | 124 |
| Pipe | ||||||||
| G-Lex E52A003 G-Lex E52A003N E52A003-E52A003N.pdf |
0.22, I₅=0.95 | 0.954 | 240 | 10 | 10000 | 120 | > 500 | 123 |
| G-Lene P46A010U P46A010U.pdf |
0.22, I₅=0.95 | 0.948 | 230 | 12 | 8700 | 120 | > 48 | 123 |
| G-Lex E52U003 G-Lex E52U003N E52U003-E52U003N.pdf |
0.22, I₅=0.95 | 0.954 | 240 | 10 | 10000 | 120 | > 500 | 123 |
| G-Lex P54A001 G-Lex P54A001N P54A001-P54A001N.pdf |
0.09, I₅=0.46 | 0.954 | 250 | 11 | 10000 | 140 | > 500 | 123 |
| G-lex P52A003 P52A003.pdf |
0.05, I₅=0.25 | 0.952 | 245 | 11 | 10000 | 280 | >1000 | 123 |
| Grade | MFI (I₂) (g/10min) ASTM D1238 |
Density @23°C (g/cc) ASTM D1505 |
Tensile @Break MD/TD (Kg/cm²) ASTM D882 |
Elongation @Break MD/TD (%) ASTM D882 |
Tear Strength MD/TD (g/mic) ASTM D1922 |
Dart Impact Strength (g/mic) ASTM D1709 |
|---|---|---|---|---|---|---|
| Film-HM HDPE | ||||||
| G-Lex F55HM0003 G-Lex F55HM0003N F55HM0003-F55HM0003N.pdf |
0.09, I₂₁=13 | 0.954 | 400/350 | 400/500 | 1/5 | 5 |
| Film-HDPE | ||||||
| G-Lene E45A003 E45A003.pdf |
0.6 | 0.945 | 400/350 | 750/900 | 0.3/4 | 2 |
Blown film properties were measured on 25 micron blown film extruded at a blown-up ratio (BUR) 2.5 and Cast film properties were measured on 25 micron film.
Please refer respective grade data-sheet for more details.
| Grade | MFI (I₂) (g/10min) ASTM D1238 |
Density @23°C (g/cc) ASTM D1505 |
Tensile @Break MD/TD (Kg/cm²) ASTM D882 |
Elongation @ Break MD/TD (%) ASTM D882 |
Tear Strength MD/TD (g/mic) ASTM D1922 |
Dart Impact Strength (g/mic) ASTM D1709 |
COF Static/ Dynamic ASTM D1894 |
|---|---|---|---|---|---|---|---|
| Film | |||||||
| G-Lene F20S009 F20S009.pdf |
0.9 | 0.920 | 350/300 | 650/750 | 3/10 | 3.0 | 0.20/0.18 |
| G-Lene F18S010U F18S010U.pdf |
1.0 | 0.918 | 400/270 | 580/750 | 3/15 | 3.0 | 0.20/0.18 |
| G-Lene E20AN009 E20AN009.pdf |
0.9 | 0.918 | 350/300 | 650/750 | 3/10 | 3.0 | - |
| G-Lene F18A010U F18A010U.pdf |
1.0 | 0.918 | 400/270 | 580/750 | 3/15 | 3.0 | - |
| G-Lene F18S020U F18S020U.pdf |
2.0 | 0.918 | 300/230 | 650/760 | 2/10 | 2.7 | - |
| G-Lene F18A020U F18A020U.pdf |
2.0 | 0.918 | 350/250 | 450/850 | 2/10 | 2.8 | - |
| Film Metallocene | |||||||
| G-Lene MF18S010U MF18S010U.pdf |
1.0 | 0.918 | 500/450 | 550/650 | 10/15 | 17 | 0.20/0.18 |
| G-Lene MF18A010U MF18A010U.pdf |
1.0 | 0.918 | 500/450 | 550/650 | 10/15 | 17 | - |
| Extrusion Coating | |||||||
| G-Lene E36A060 E36A060.pdf |
7 | 0.922 | 240/200 | 600/700 | - | - | - |
| Grade | MFI (I₂) (g/10min) ASTM D1238 |
Density @23°C (g/cc) ASTM D1505 |
Tensile @Yield (Kg/cm²) ASTM D638 |
Elongation @Yield (%) ASTM D638 |
Flexural Modulus (Kg/cm²) ASTM D790 |
Izod Impact Strength (J/m) ASTM D256 |
ESCR (F50) hrs (10% Igepol) ASTM D1693 |
VSP (°C) ASTM D1525 |
|---|---|---|---|---|---|---|---|---|
| Injection Moulding/Masterbatch | ||||||||
| G-Lene I26A500U I26A500U.pdf |
50 | 0.926 | 98 | 16 | - | - | - | 90 |
| Roto Moulding | ||||||||
| G-Lene R35A042 R35A042.pdf |
4.2 | 0.935 | 185 | 16 | 6000 | - | 24 | 115 |
| G-Lene R36A050U R36A050U.pdf |
4.5 | 0.936 | 170 | 15 | 6200 | - | > 192 | 115 |
| G-Lene R35U042 R35U042.pdf |
4.2 | 0.935 | 185 | 16 | 6000 | - | 24 | 115 |
| G-Lene R36U050U R36U050U.pdf |
4.5 | 0.936 | 170 | 15 | 6200 | - | >192 | 115 |
| Drip Pipe | ||||||||
| G-Lene D22S010 D22S010.pdf |
1.0 | 0.922 | 130 | 13 | 3500 | - | - | - |
- Blown film properties were measured on 25 micron blown film extruded at a blown-up ratio (BUR) 2.5 and Cast film properties were measured on 25 micron film.
- Please refer respective grade data-sheet for more details.
